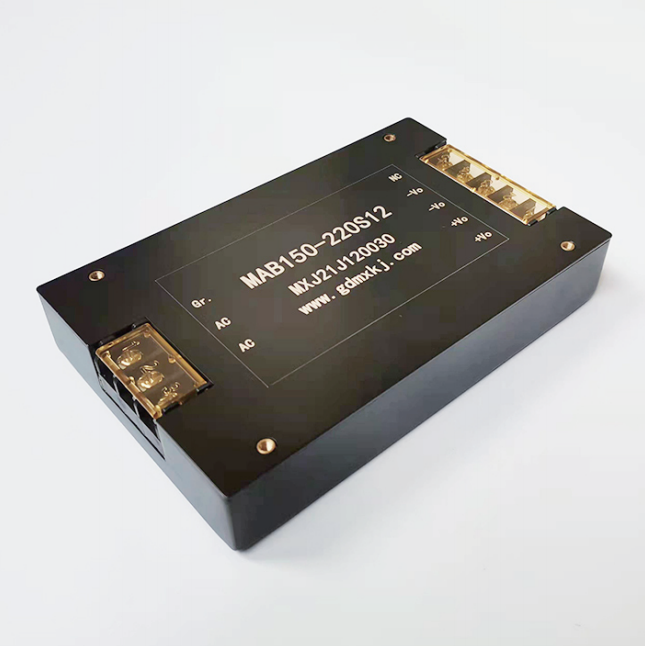

Features:
◆Broadband noise filter of input
◆ Surge suppress circuit of input
◆ Comply with UL1950, IEC950 safety regulation
◆ Attractive outline design
◆ Terminal connection method
Condition: All specifications are tested under the room temperature 25℃ , Normal input voltage and Pure Negative Normal Load.
Input Characteristic：
Voltage Range: 220 VAC Rated value 176-264 VAC
Output Characteristic：
| Voltage Set-point Accuracy | ±2% |
| Line Regulation<main> | ±0.5% |
| Load Regulation<main> | ±0.5% |
| Cross regulation | ± 3% |
| Output Current Limiting | 120%(Typ) |
| Output Current | 3-20A for option |
| Output Voltage | 5-48V |
| Power | 50-150w |
General Characteristic：
| Switching Frequency | 100 - 200 KHz | ||
| Isolation Resitstance | 200 MΩ | ||
| Isolation Voltage | Input-Output | >1500VAC/1min ( leakage current<5mA) | |
| Input-Case | >1500VAC/1min leakage current<5mA) | ||
| Output-Case | >500 VDC/1min | ||
| Main-Vice | >500 VDC/1min | ||
| Environmental Characteristics | Case Temperature | Industry | -25 - +85℃ |
| Military I | -40 - +85℃ | ||
| Military II | -55 - +85℃ | ||
| Storage Temperature | Industry | -45 - +105℃ | |
| Military products | -55 - +105℃ | ||
Protective Characteristic：
1、Input under voltage protection
2、Output short circuit protection
3、Over temperature protection
4. Output over current protection
Models:
| Vac Input voltage | Vac Input voltage<Range> | Vdc Output voltage | A Output current | pk-pkmv Ripple and noise | Efficiency | Models | |
| SING | 220 | 176-264 | 0.5 | 20 | 80 | 83% | MAC100-220S05 |
| 220 | 176-264 | 12 | 10.4 | 120 | 84% | MAC125-220S12 | |
| 220 | 176-264 | 24 | 6.25 | 200 | 85% | MAC150-220S24 | |
| 220 | 176-264 | 28 | 5.36 | 280 | 85% | MAC150-220S28 | |
| 220 | 176-264 | 48 | 3.1 | 300 | 85% | MAC150-220S48 | |
| DOU | 220 | 176-264 | 05&12 | 10&4 | 100&120 | 83% | MAC100-220D05&12 |
| 220 | 176-264 | 05&24 | 4&4 | 80&200 | 83% | MAC120-220D05&24 | |
| 220 | 176-264 | 12&24 | 6&3.25 | 120&200 | 84% | MAC150-220D12&24 | |
| 220 | 176-264 | 05&28 | 2&5 | 50&280 | 83% | MAC150-220D05&28 | |

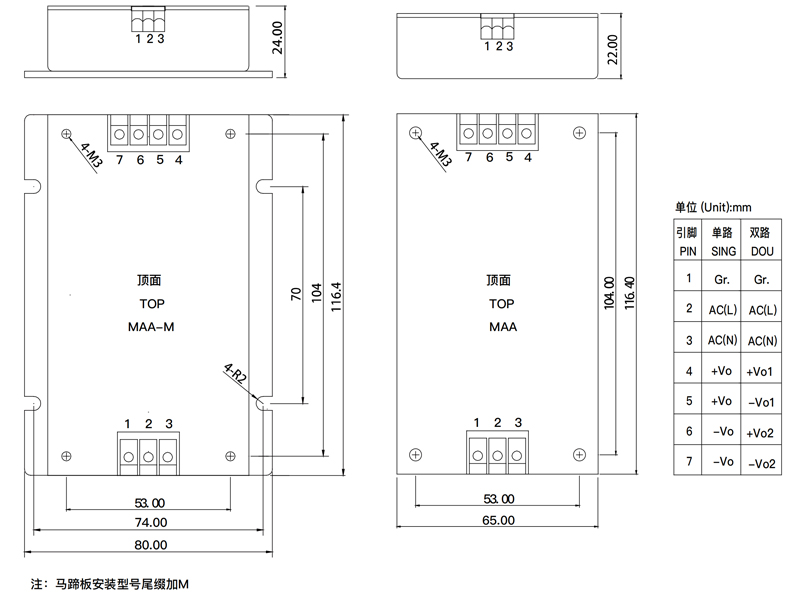

Mechanical drawing and pin definition：
